Asrock Radeon RX 7900 XTX Phantom Gaming, PCIe4, 24GB GDDR6, HDMI, 3 DP, 2615MHz Clock, RGB

AMD Radeon RX 7900 XTX Phantom Gaming 24GB OC

Clock: GPU / Memory
Boost Clock: Up to 2615MHz / 20Gbps
Game Clock: 2455MHz / 20Gbps

Key Specifications
AMD Radeon RX 7900 XTX GPU
24GB GDDR6 on 384-Bit Memory Bus
96 AMD RDNA 3 Compute Units (With Rt+Ai Accelerators)
96MB AMD Infinity Cache Technology
PCI Express 4.0 Support
3 x 8-pin Power Connectors

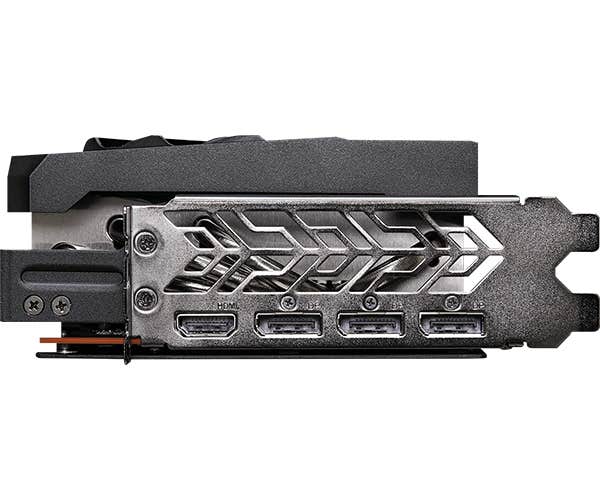

3 x DisplayPort 2.1 / 1 x HDMI 2.1

Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System
Striped Ring Fan
Reinforced Metal Frame
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card

Air Deflecting Fin Guide Airflow to Go Through Regularly & Quickly
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Air Deflecting Fin Guide Airflow to Go Through Regularly & Quickly
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Nickel-plated Copper Base Maximize GPU Contact Area
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding Improve Heat Dissipation
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste Perfect Thermal Teamwork
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad Better Heat Transfer
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque Optimized Mounting Pressure
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

0dB Silent Cooling Spin For Cooling, Stop For Silence
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Polychrome SYNC Create your own unique colorful light effects
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED On/Off Switch On or Off? Switch as You Want
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.

ARGB Pin-header More ARGB, More Fancy
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

Reinforced Metal Frame Be solid. No sag
Enhances the structure to prevent the PCB from being bent.

Stylish Metal Backplate Solid, Fancy, Cool
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI Express 4.0 Support
This graphics card features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.

BREAKTHROUGH PERFORMANCE
AMD Radeon RX 7000 Series graphics cards set a new standard for ultra-enthusiast class gaming performance. Featuring advanced AMD RDNA 3 compute units, blazing fast clock speeds, and chiplet technology to enable fluid, high-refresh rate gaming experiences. Breakthrough new levels of performance with up to 24GB of GDDR6 memory and 2nd generation AMD Infinity Cache to deliver an incredible experience at 4K and beyond.

BREATHTAKING VISUALS
Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX features and upscaling technologies, to deliver world-class visuals with remarkable performance. Further immerse yourself with the AMD Radiance Display Engine and DisplayPort 2.1 to experience up to 68 billion colors at up to 8K 165Hz.

BETTER TOGETHER
Combine AMD Radeon RX 7000 Series graphics cards and AMD Ryzen processors to activate AMD smart technologies3. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon RX 7000 Series GPU with the AMD Software: Adrenalin Edition application, featuring bulletproof drivers, for the best PC gaming experiences.

UPSIZE PERFORMANCE. MAXIMIZE FIDELIT
AMD FidelityFX Super Resolution technology1 takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games. AMD Radeon Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.

Recommended PSU
1000W
Power Connector
3 x 8-pin
Dimensions
330 x 140 x 57.6 mm, 2.8-slot
